CUSTOM CHUCK JAWS

From CAD review to an agreed sample route

Custom tall, wide, pie, contoured and thin-wall-support chuck jaws for accepted drawings and confirmed production routes.

STEP / IGS / DWG / PDFDFM engineering reviewCMM inspection available
Upload Your Requirements

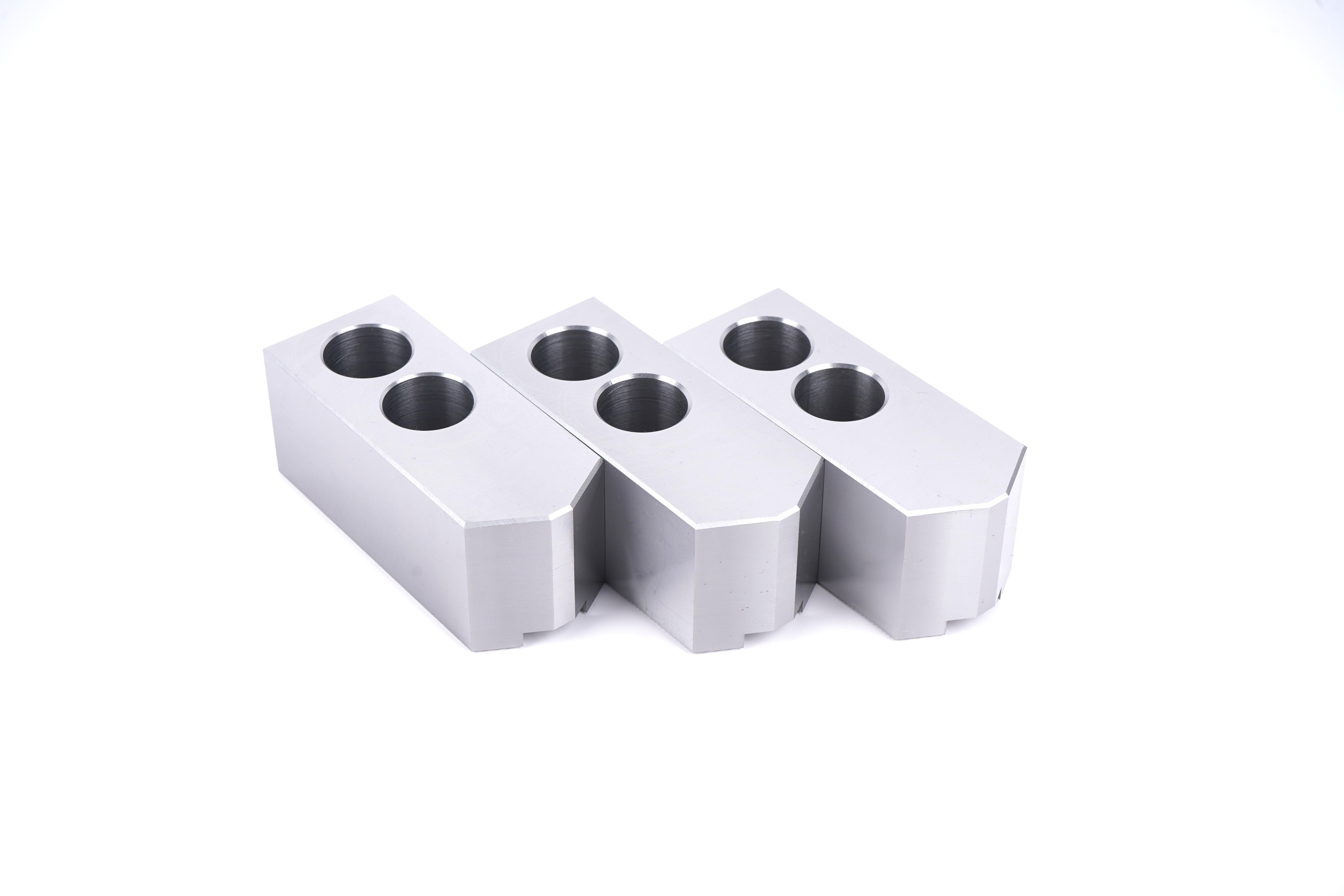

Custom profile jaw examples
CUSTOM WORKFLOW

Four steps from drawing to delivery

The sample route begins after requirements, manufacturability and commercial terms are confirmed.

01

Upload Drawing

Send STEP, IGS, DWG or PDF files with equipment and workpiece context.

02

DFM Review

Interface, material, geometry, inspection and route feasibility are reviewed.

03

Sample & Inspection

Accepted samples follow the confirmed 7-day route with agreed inspection evidence.

04

Production & Delivery

Repeat or batch orders follow the released requirements and agreed delivery method.

REPRESENTATIVE CUSTOM FORMS

Geometry-driven workholding requests

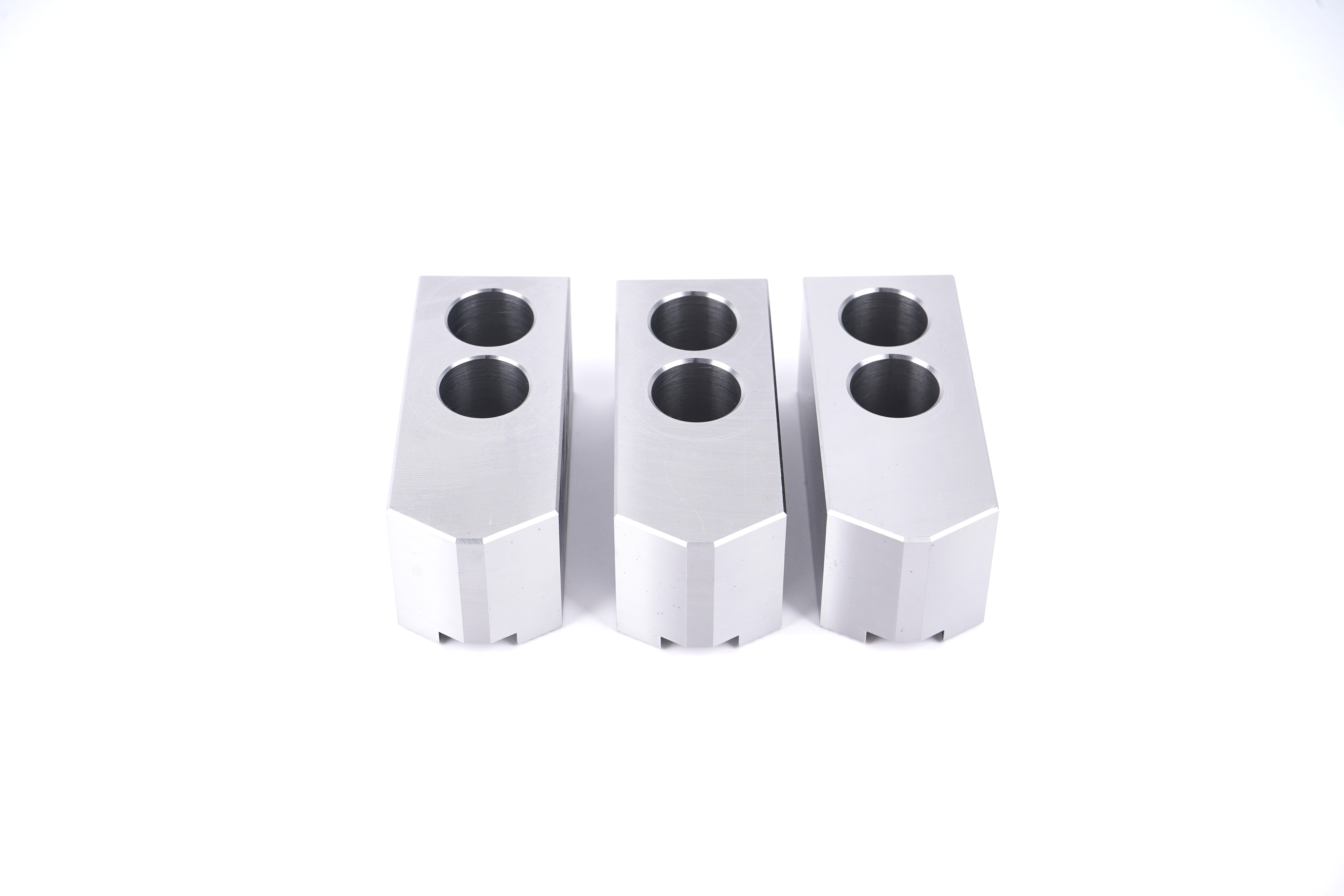

Tall and wide custom jaws
Tall & wide jawsFor deeper or extended contact requirements.

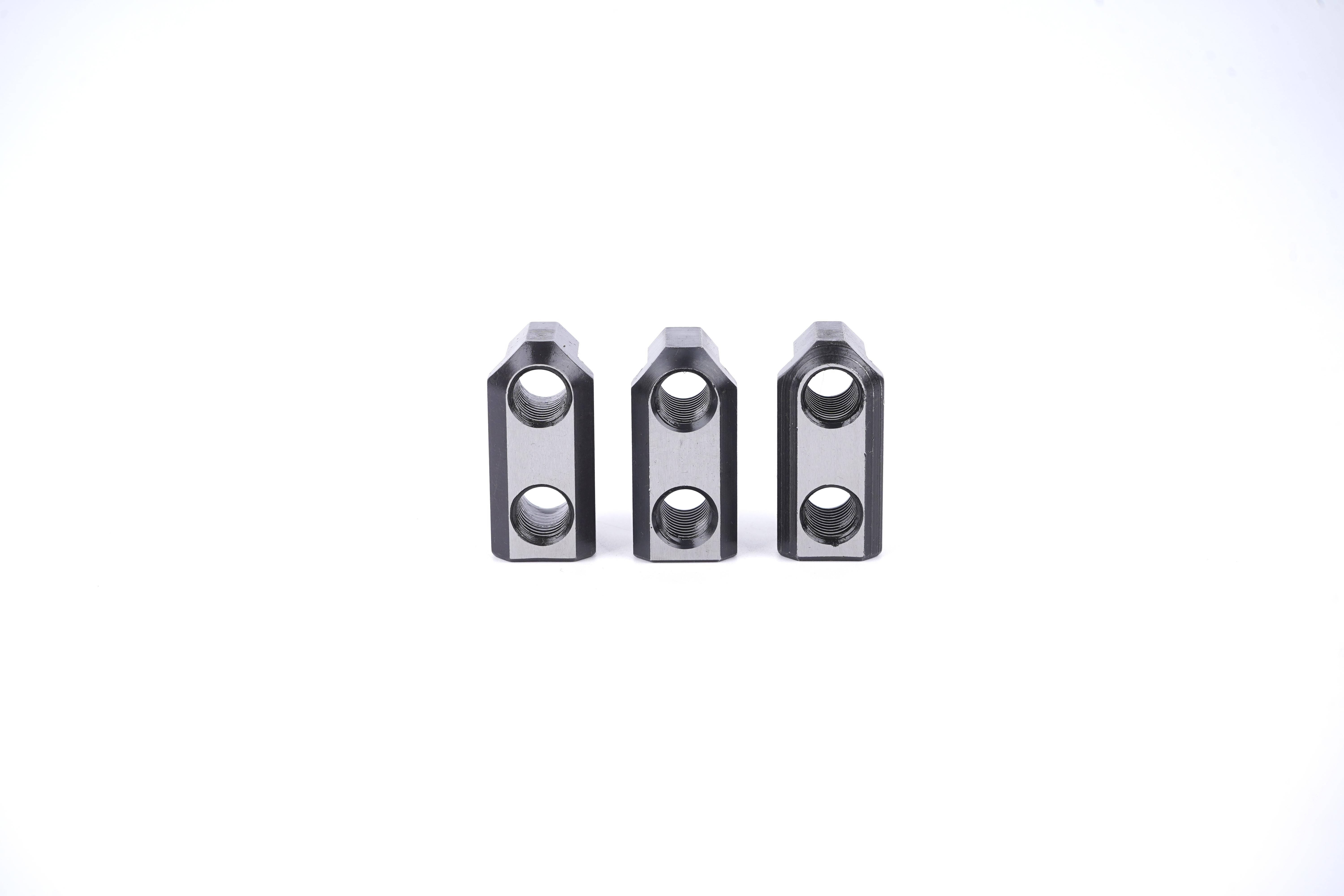

Pie and full-circle jaw forms
Pie / full-contact formsFor supported thin-wall and larger-diameter profiles.

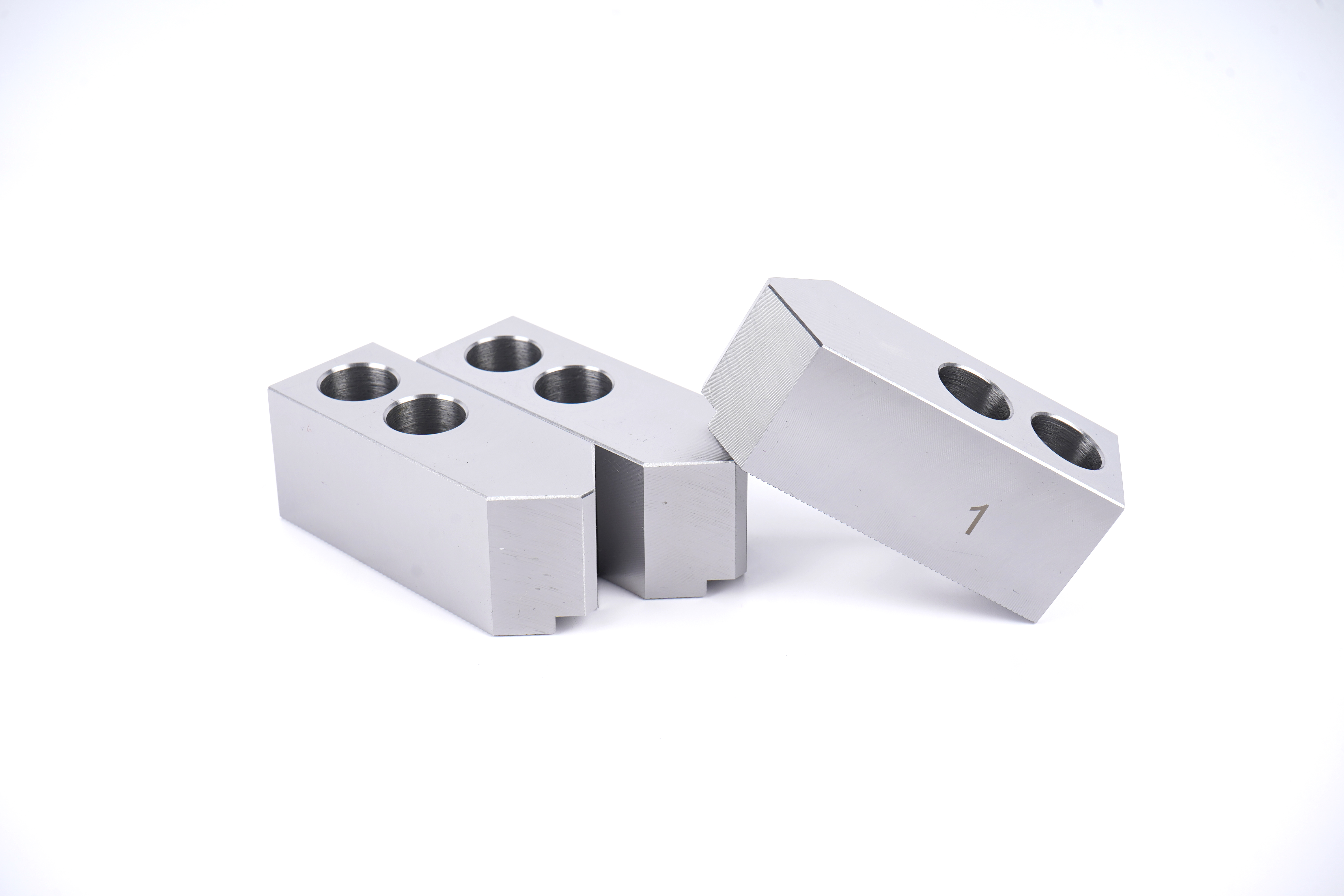

Custom chuck jaw profiles
Special-form chuck jawsFor confirmed chuck interfaces and workpiece profiles.
CUSTOM RFQ

Send your drawing and annual demand

Use the form to register the request. Confidential files can also be emailed directly to liwen@molitech-eng.com.
