The technical pages below come from the updated Molitech product catalog. Complete parameter tables and notes are retained. Final dimensions and compatibility are confirmed against the exact chuck model before quotation.

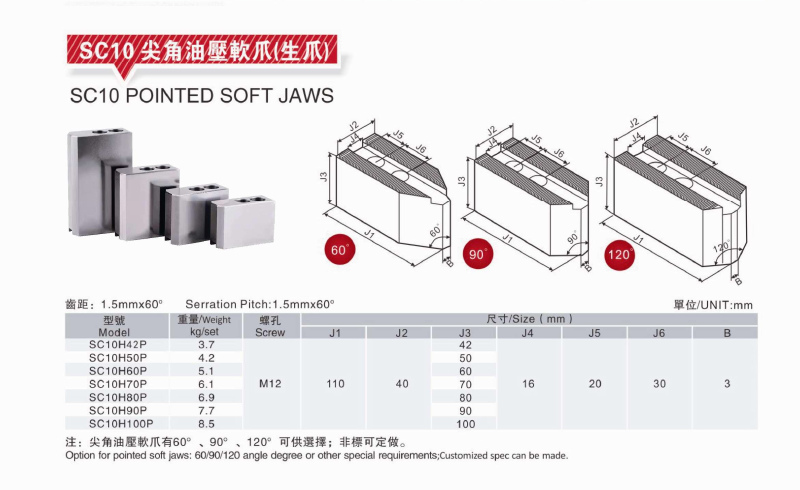

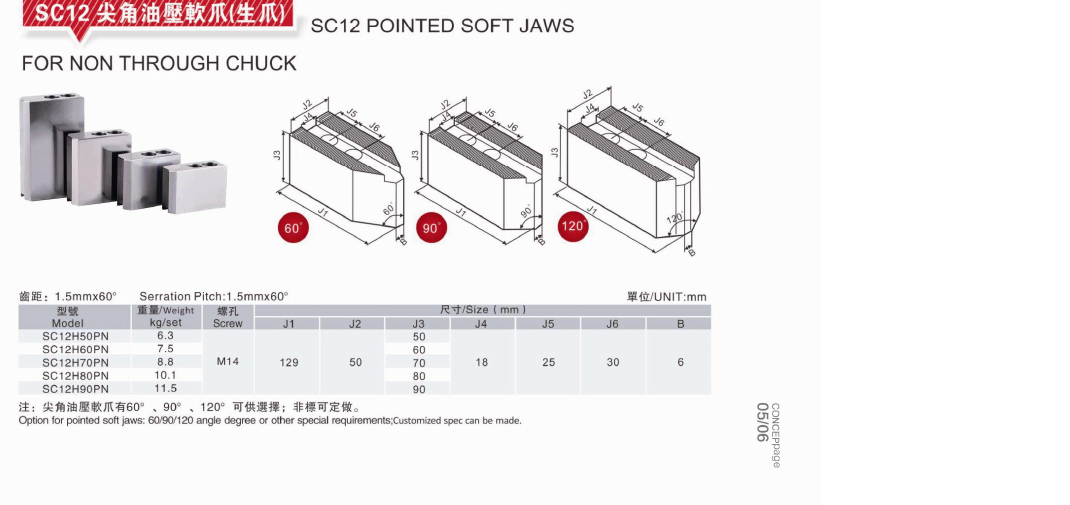

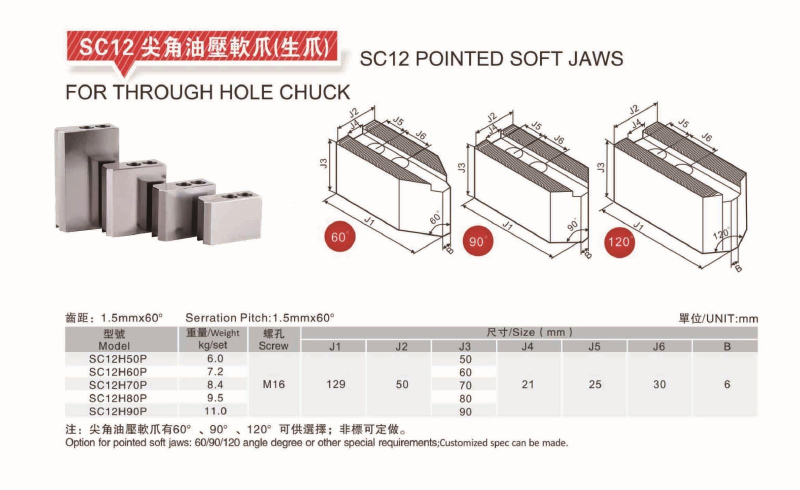

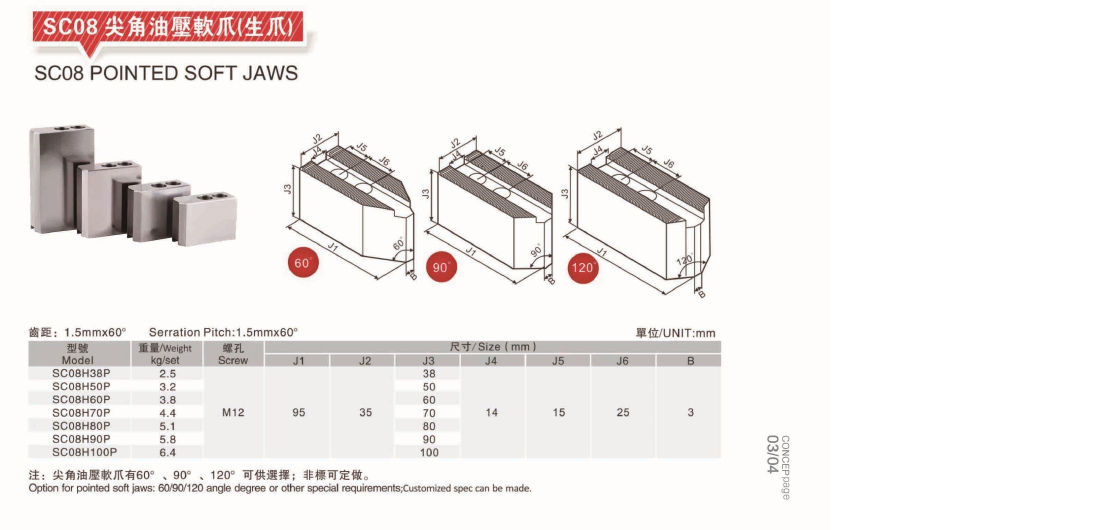

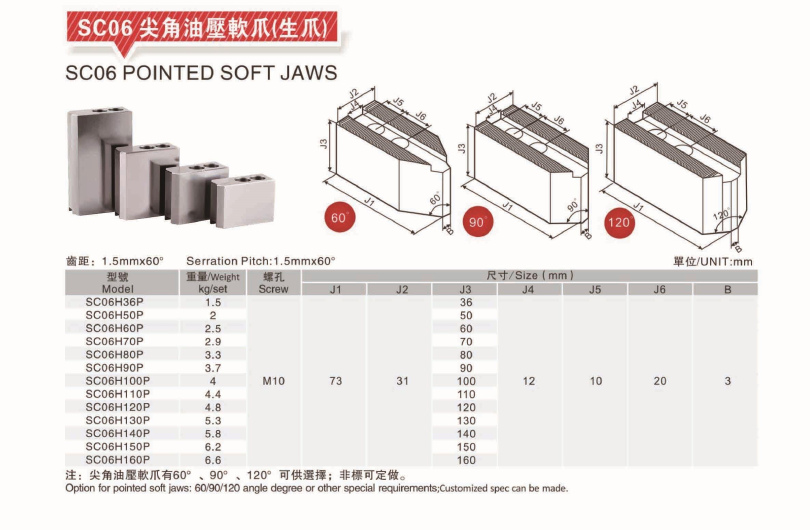

Single product block from the current jaws catalogue, including dimensions, specifications and notes.Single product block from the current jaws catalogue, including dimensions, specifications and notes.Single product block from the current jaws catalogue, including dimensions, specifications and notes.Single product block from the current jaws catalogue, including dimensions, specifications and notes.Single product block from the current jaws catalogue, including dimensions, specifications and notes.
BEFORE RFQ
Information needed to confirm fit
Chuck identification
Brand, exact model, chuck size and number of jaws.
Jaw interface
Serration pitch and angle, tongue-and-groove dimensions, mounting holes and thread.
Application
Raw or machined profile, workpiece drawing, quantity, inspection need and required date.
FIT CONFIRMATION
Send the chuck model and current jaw dimensions.
We will identify the relevant catalog family and confirm the quotation inputs.
