A practical checklist for evaluating Chinese suppliers of compact through-spindle coolant filtration modules, from pressure and flow to interfaces and inspection evidence.
Introduction
Through-spindle coolant filtration is often described as a high-pressure pump, a filter, and a tank. For overseas buyers sourcing from China, that description is too simple.
The real sourcing risk sits in the full circuit: how coolant is pre-filtered, how it enters the tank, how the high-pressure pump and high-pressure filter are matched, how the piping and fittings connect to the machine, and whether the supplier can prove the module is ready before shipment.
If you are a machine-tool service company, dealer, accessory supplier, or integrator, the goal is not just to find a lower quotation. The goal is to qualify a compact module supplier without creating pressure, leakage, filtration, interface, or after-sales problems for your customer.

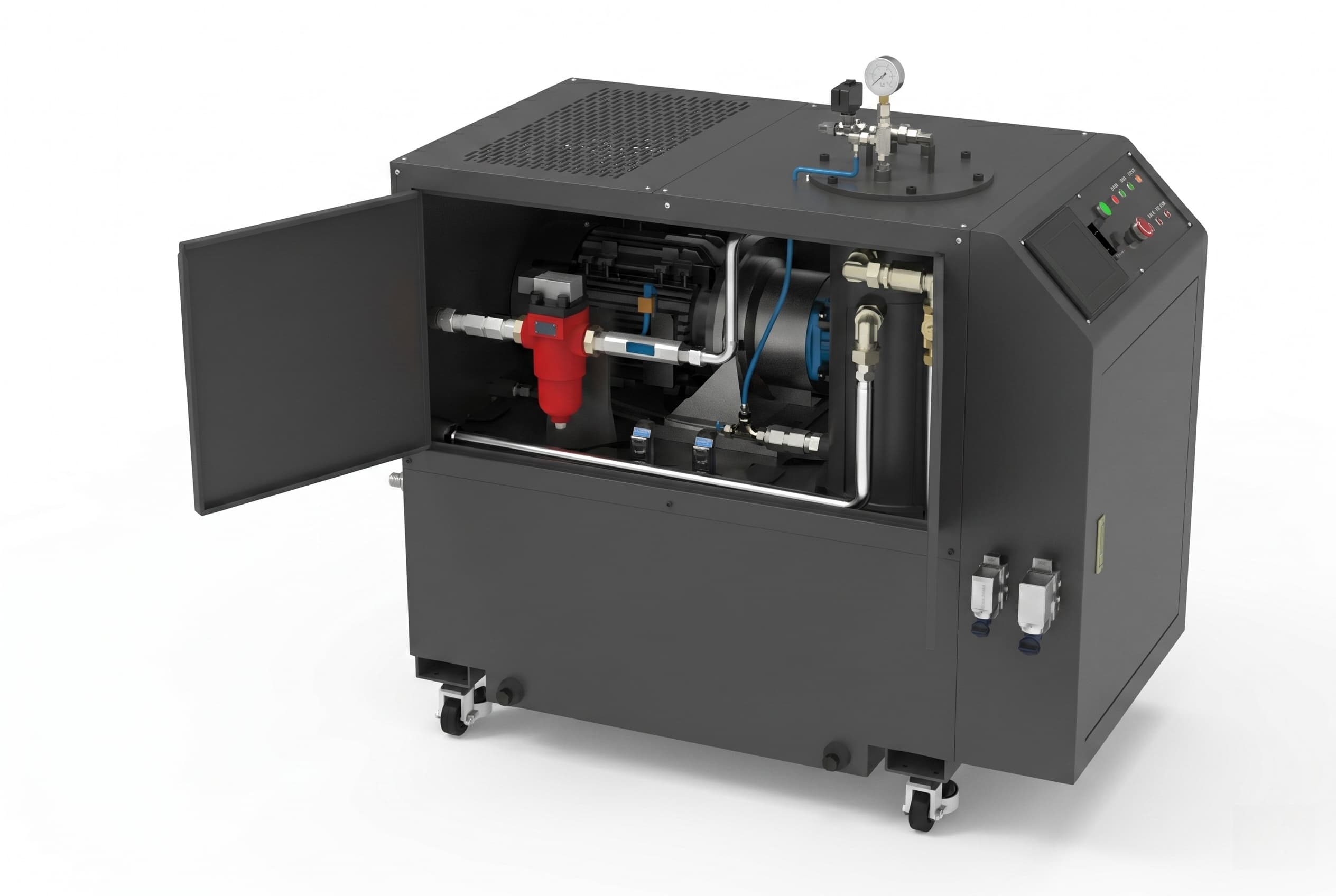

What a Through-Spindle Coolant Filtration Module Usually Includes
A compact through-spindle coolant filtration module may include:
- a coolant tank
- a low-pressure lift pump
- pre-filtration equipment
- a high-pressure pump
- a high-pressure filter
- valves, pressure gauges, pipes, hoses, and fittings
- electrical control components
- outlet connections to the machine or tool coolant circuit
In a typical flow path, coolant is lifted into a pre-filter, flows into the tank, then is delivered by a high-pressure pump through a high-pressure filter and into the machine's internal coolant route.
This matters because each part of the chain affects the next one. A good pump cannot compensate for unclear filtration requirements. A clean tank does not solve the wrong connector. A fast quotation does not prove the supplier understands the machine interface.
Why Buyers Look at These Modules
Through-spindle coolant can help with chip evacuation, chip breaking, high-pressure cooling, and internal tool cooling when it is correctly matched to the machining process.
The buyer pain is familiar:
- chips remain in the cutting area
- small chips block coolant paths
- operators need frequent retracts to clear chips
- tools wear faster or are changed too often
- process stability depends on coolant delivery, not only on the cutting tool
However, these benefits are application-dependent. A supplier's brochure may mention better surface finish, improved accuracy, lower energy use, or reduced tool breakage. Those claims should be verified against the buyer's machine, material, tool, coolant, pressure, flow, filtration, and process conditions.
The First Risk: Pressure and Flow Are Not Enough
Many buyers start with two questions: pressure and flow. They are important, but they are not enough.
Before asking a Chinese supplier to quote, define:
- required pressure and the pressure unit
- required flow rate at the actual operating condition
- coolant type and compatibility
- filtration grade and chip contamination condition
- motor voltage, frequency, phase, and local electrical expectations
- tank size and footprint limits
- pipe, hose, thread, and connector standards
- interface photos, drawings, or sample parts
- whether the module is for a new package, retrofit, service replacement, or private-label accessory
One inbox source I processed mentioned pressure from 38 to 158 and flow from 20 L/min to 180 L/min, but the pressure unit was not specified. That is exactly the kind of detail that must be clarified before quotation. A number without a unit is not a specification.
The Second Risk: Filtration and Chip Load
For through-spindle coolant, filtration is not decoration. The filter must protect the pump, downstream components, and the small coolant passages inside the tool or spindle circuit.
Ask the supplier:
- What filtration method is used before the tank?
- What high-pressure filter is used after the pump?
- What contamination level or particle size is the module designed for?
- How is filter clogging detected or maintained?
- What happens when chip load is higher than expected?
- Are replacement filter elements easy for the buyer to source?
If the supplier only answers with pump power and tank volume, the technical conversation is not mature enough.
The Third Risk: Machine Interface and Local Responsibility
A through-spindle coolant module is not a universal box that fits every machine.
The buyer or local partner should confirm:
- machine model and coolant circuit layout
- spindle or rotary union requirements
- tool-holder and internal coolant route
- available installation space
- drain and return path
- electrical connection and control logic
- local safety, documentation, and after-sales responsibility
This is especially important for overseas sourcing. A China-side supplier may build a good compact module, but your local team still needs to own site survey, installation, commissioning, and customer support.
That responsibility split should be clear before any supplier is approved.
Supplier Qualification Checklist
When screening Chinese suppliers for a compact through-spindle coolant filtration module, I would check at least seven areas.
1. Similar module experience Can the supplier show comparable pump/filter/tank modules, not just individual parts?
2. Specification discipline Do they ask for pressure, flow, voltage, coolant, filtration, interface, and installation details before quoting?
3. Component matching Are the pump, filter, tank, piping, fittings, and electrical components selected as one circuit?
4. Inspection and test evidence Can they provide pressure test, leakage check, electrical check, and visual inspection evidence before shipment?
5. Documentation readiness Can they provide drawings, component lists, maintenance notes, labels, and packaging information in a form your team can use?
6. Spare parts support Can the buyer reorder filter elements, fittings, seals, gauges, or other service items later?
7. Export packaging Is the module packed for international transport, with sensitive components protected and connection points identified?
How I Would Handle This as a China Sourcing Agent
For this kind of module, I would not begin by asking several factories for a quick price. I would first turn the buyer's requirement into a clear RFQ and supplier-search checklist.
The practical workflow is:
- clarify the machine, application, pressure, flow, coolant, and filtration expectations
- separate what the China-side supplier is responsible for from what the buyer's local team owns
- search for suppliers with relevant compact coolant module experience
- compare their technical questions, not only their quotations
- request drawings, component lists, and test evidence
- follow sample or trial order progress when needed
- check packaging, labeling, and shipment readiness before export
Molitech's role is China-side technical sourcing: supplier search, RFQ clarification, sample or order follow-up, and simple pre-shipment checks when needed. It is not overseas installation, commissioning, machine accuracy recovery, or a promise that one module will solve every machining problem.
Practical Internal Links
If you are evaluating machine-tool auxiliary modules or coolant circuit parts from China, these pages are useful starting points:
Conclusion
A through-spindle coolant filtration module should be evaluated as a pressure-flow-filtration-interface chain, not as a standalone pump quotation.
For overseas service companies, dealers, integrators, and accessory suppliers, the safer China sourcing path is to define the application, clarify the responsibility split, and compare suppliers by real technical answers and basic shipment evidence before placing an order.
If you are comparing Chinese suppliers for compact coolant filtration modules, share your machine information, pressure and flow expectations, filtration requirement, interface photos or drawings, and local installation plan. I can help you turn that into a China-side technical sourcing and order follow-up process.
