Standard and Raw Jaw Supply
Standard steel jaws, raw machinable blanks and selected special-size options are matched to chuck size, jaw count, interface and material.
Quote a jaw setSOFT JAW CUSTOMIZATION
Machining Support for the Jaw You Need
The Wuhan route supports custom jaw profiles, special-material contact parts and related workholding components. Chuck interface, workpiece geometry, material and inspection requirements are reviewed before quotation.
Send an RFQ
WUHAN PRECISION-MACHINING BASE
A production route built around soft-jaw fit.
The route is organized around the details that make a jaw usable: chuck interface, mounting features, gripping profile, material and set consistency.
Chuck Interface and Mounting Features
Serration pitch and angle, tongue-and-groove details, mounting-hole spacing and reference datums are confirmed before production.
Confirm a chuck interfaceCustom Bored and Profile-Machined Jaws
Step, bore, radius and contoured contact profiles are reviewed from the workpiece drawing, gripping plan and required jaw condition.
Request custom jaw reviewCNC Milling for Custom Jaw Features
Turning, CNC milling, grinding and slow-wire EDM support selected special forms and related workholding parts when the released drawing fits the approved route.
Review a related machined partPROCESS EVIDENCE
Evidence behind a soft-jaw order.

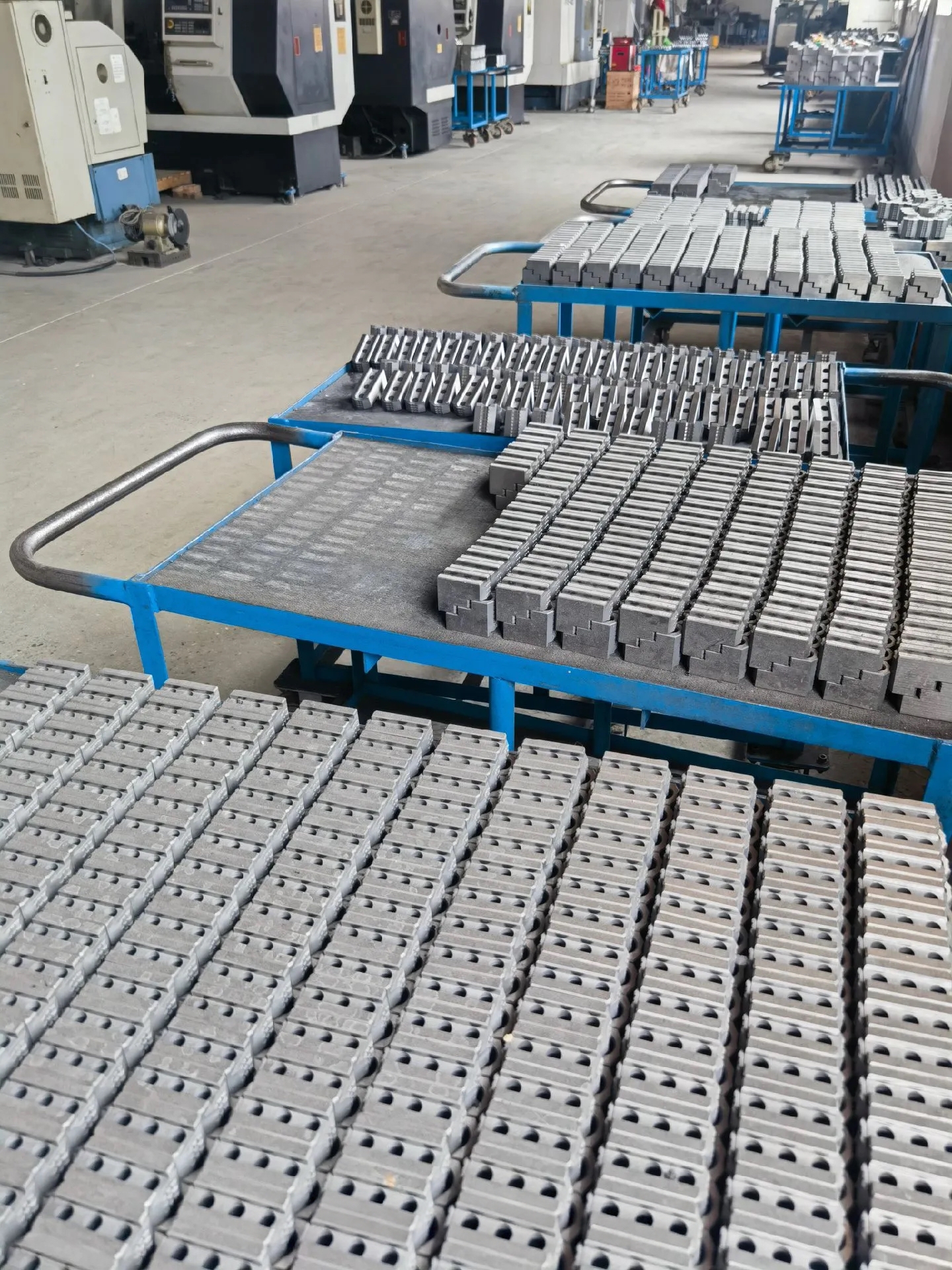

These views connect the product to the route: jaw preparation, feature machining, workshop handling and the checks used before shipment release.
ROUTE FIT
What is confirmed before the jaw is made.
Each order is reviewed against the chuck interface, gripping requirement and agreed acceptance criteria.
| Jaw route | Typical output | What to send | Review focus |
|---|---|---|---|
| Standard / raw jaws | Steel jaw sets and machinable blanks | Chuck brand/model, size, jaw count, interface | Mounting fit, material and set configuration |
| Special-size jaws | Tall, wide, long and special-form blanks | Required stock dimensions and workpiece envelope | Profile access, stiffness and machining allowance |
| Custom profile jaws | Bored, stepped, radius and contoured contact profiles | Workpiece drawing, gripping datum and quantity | Contact geometry, CTQs and final jaw condition |
| Related machined parts | Selected workholding plates, blocks and interface parts | Released 2D/3D drawing, material and inspection needs | Process fit, tolerance stack and agreed evidence |
COMPLEMENTARY PROCESSES
A complete part may need more than machining.
Heat treatment, surface treatment and specialist operations may be coordinated through qualified sources when required. The specification, allowances, masking, appearance criteria and post-process checks must be defined before release.
- Assigned processes and suppliers remain traceable
- Critical complementary processes are reviewed before quotation
- Evidence requirements are agreed before order
MACHINING FAQ
Before sending the drawing.
Do you accept one-off prototypes?
Yes. We support suitable engineering prototypes, pilot runs, repeat batches and production orders.
Can you promise a 3-5 day prototype?
It is a target for suitable parts after drawing review, material availability and capacity confirmation. The quotation states the actual lead time.
DRAWING REVIEW
Request Review Which process route fits your part?
Send the drawing, model, material, quantity and critical requirements.
