How to evaluate fourth-generation consumable-free vortex separators for coolant filtration, including material-based selection, flow data, and supplier evidence checks.
Introduction
"Consumable-free" is not just a marketing phrase when the separator design and application conditions are clear.
For machine shops, service companies, dealers, and integrators, a vortex separator can reduce dependence on paper media, filter bags, cartridges, or other replaceable elements. In the right coolant circuit, it can also simplify daily maintenance and reduce operating-cost pressure.
The key point is application fit. A fourth-generation improved vortex separator may be a strong option, but the selection should be based on machining material, particle condition, flow requirement, lift, coolant type, and documented supplier data.
If you are considering a vortex separator or compact coolant filtration module from China, the first question should not only be "How much does it cost?" The better question is: "Which material and coolant condition is this model designed for, and what test data supports the selection?"
How A Vortex Separator Works

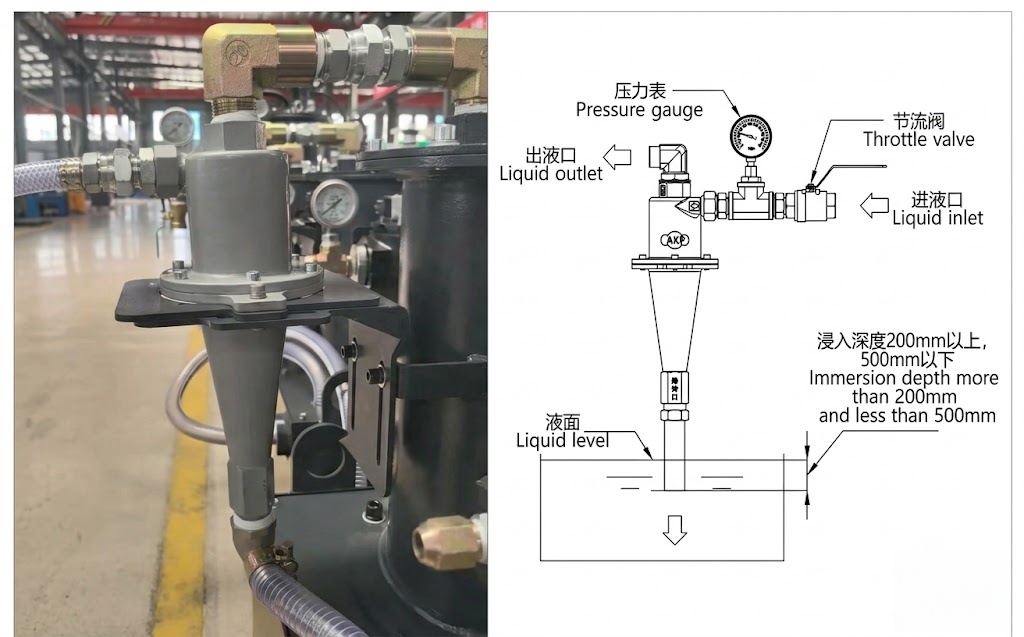

A vortex separator uses pressure to inject contaminated coolant into a cone at high speed. The liquid forms an external eddy current inside the cone. Solid particles are pushed toward the inner wall by centrifugal force, then move downward with gravity and liquid flow toward the lower discharge area.
The cleaner liquid moves upward along the cone axis and exits through the outlet. In practice, the internal vortex helps separate dirty liquid and clean liquid without relying on disposable filter media.
This is why vortex separators are often discussed for:
- high-speed grinding coolant
- heavy grinding or strong grinding applications
- general finishing coolant
- low-viscosity oil-based coolant
- compact machine-side coolant filtration modules
The unit can also be used in parallel to increase flow capacity, or in series when the buyer wants to improve separation accuracy. That design decision should be confirmed by the supplier, not assumed from a brochure.
What Is Different About The Fourth-Generation Improved Type
The current reference product is described as a fourth-generation improved vortex separator / vortex filter. The important practical advantages are:
- no regular filter-media consumables
- reduced handling of dirty paper, bags, or cartridges
- a compact structure suitable for machine-side coolant circuits
- model selection based on actual material and operating condition
- available selection data for flow, lift, interface, dimension, and weight
For overseas buyers, the "consumable-free" point is useful because it changes the cost discussion. Instead of only comparing purchase price, the buyer can also compare consumable purchasing, replacement labor, dirty-media handling, and downtime caused by clogged or exhausted filter elements.
But consumable-free does not mean maintenance-free. Sludge discharge, seal condition, pipe connection, pump protection, blockage risk, and cleaning access still need to be checked.
The 80%-90% Energy Claim Needs Material-Based Selection
For this supplier generation, an 80%-90% energy-saving or energy-efficiency-related claim is available as a usable talking point, but it should be handled precisely.
It should not be written as "every vortex separator saves 80%-90% energy in every workshop." A safer purchasing interpretation is:
- the claim belongs to this supplier/product generation
- the actual result depends on the material being machined
- aluminum and steel applications may require different efficiency grades
- chip form, particle load, coolant condition, flow rate, lift, and pump configuration can change the result
- the baseline comparison should be clarified before purchase
In other words, the energy-efficiency level is selected according to the application. Aluminum parts and steel parts should not automatically use the same selection logic.
Before relying on the number, ask the supplier:
- What material was used in the test: aluminum, steel, cast iron, stainless steel, or mixed materials?
- What baseline was used for the 80%-90% comparison?
- Was the comparison based on pump power, pressure loss, filtration media cost, labor time, or total operating burden?
- What flow rate, lift, pressure, coolant type, and duty cycle were used?
- Can the supplier provide test records, video evidence, application photos, or a written selection note?
First Clarify The Contamination Problem
Before choosing a separator, define the target contamination:
- fine aluminum particles
- steel chips
- cast iron fines
- grinding sludge
- tramp oil mixed with coolant
- mixed materials from different machines
- small particles that affect through-spindle coolant or nozzles
- coarse chips that should be removed before downstream fine filtration
Different contaminants behave differently. A separator that performs well in one process may not be the right choice for another.
If a supplier only says "high efficiency," "no consumables," or "energy saving," ask what particle size range and material type the claim is based on.
Then Match The Machining Material
The reference note makes one point especially clear: aluminum and steel applications may require different energy-efficiency levels.
That matters because aluminum fines, steel particles, cast iron fines, and grinding sludge do not behave the same way in coolant. Their density, shape, and tendency to settle or suspend will affect separator performance.
Ask the supplier:
- Is this unit designed for aluminum, steel, cast iron, or mixed materials?
- What particle size has been tested?
- What coolant type was used during testing?
- Was the test done with real machining coolant or clean water plus artificial particles?
- Does performance change when coolant concentration, oil contamination, or chip load changes?
For overseas buyers, this is where supplier selection becomes practical. A mature supplier should ask about your machining material and contamination condition before recommending a model.
Use The Parameter Table As A Selection Tool
The reference selection table gives useful model data for AK-WX / AKWX type vortex separators. The table is not just a specification sheet; it shows why buyers should match lift and flow before confirming a model.
Example flow data from the supplier table:
- AKWX-30: at 15 m lift, supply liquid 15 L/min and clean liquid 25 L/min; at 20 m lift, 20 / 30 L/min; at 30 m lift, 30 / 35 L/min.
- AKWX-50: at 15 m lift, supply liquid 22 L/min and clean liquid 36 L/min; at 20 m lift, 45 / 40 L/min; at 30 m lift, 55 / 50 L/min.
- AKWX-60: at 15 m lift, supply liquid 55 L/min and clean liquid 105 L/min; at 20 m lift, 64 / 118 L/min; at 30 m lift, 69 / 132 L/min.
- AKWX-120: at 15 m lift, supply liquid 105 L/min and clean liquid 101 L/min; at 20 m lift, 118 / 113 L/min; at 30 m lift, 132 / 120 L/min.
- AKWX-200: at 15 m lift, supply liquid 175 L/min and clean liquid 160 L/min; at 20 m lift, 200 / 181 L/min; at 30 m lift, 232 / 200 L/min.
The same table also provides interface, dimension, and weight references. The listed weights are approximately 1.9 kg for AK-WX-30, 3.4 kg for AK-WX-50, 3.5 kg for AK-WX-60, 5.9 kg for AK-WX-120, and 11.0 kg for AK-WX-200.
This is the kind of data a buyer can use during RFQ clarification. Instead of asking for a generic "vortex separator price," send the supplier:
- required flow rate
- lift or pressure condition
- coolant type
- machining material
- target particle or sludge condition
- available installation space
- inlet and outlet connection requirements
- whether the unit will be standalone, parallel, series, or part of a compact module
Flow, Pump, And Interface Still Matter
A coolant separator does not work in isolation. It sits inside a fluid circuit.
Before approving a model, clarify:
- required flow rate
- inlet and outlet connection sizes
- working lift and pressure condition
- pump compatibility
- tank layout
- available installation space
- maintenance access
- sludge discharge method
- whether the separator is used as pre-filtration or as part of a compact module
A compact module can fail not because the separator is bad, but because the flow, pump, tank, piping, and installation interface were not matched as a system.
Consumable-Free Still Needs Maintenance Planning
Even if the device does not use filter paper, bags, or cartridges, the buyer still needs to consider:
- sludge discharge
- cleaning intervals
- wear points
- seals and fittings
- pump protection
- blockage risk
- inspection access
- spare parts availability
- operator training
For a service company, dealer, or integrator, this matters because the end customer will not only ask how the unit works on day one. They will ask what happens after months of operation.
How To Compare Vortex Separators With Other Filtration Methods
A practical comparison should include the whole coolant system, not only the separator.
Vortex Separator
Best discussed when:
- the buyer wants reduced consumables
- the contaminant profile matches the separation method
- the supplier can show application-specific test evidence
- the unit can be integrated into the existing coolant circuit
- material-based efficiency selection is available
Magnetic Separator
Best discussed when:
- ferrous contamination is the main issue
- the process produces magnetic particles
- the buyer needs simple continuous removal of magnetic fines
Paper Band Filter
Best discussed when:
- the buyer accepts consumable media
- broader particle capture is needed
- the system design already uses paper filtration
- replacement media supply is manageable
Bag Or Cartridge Filtration
Best discussed when:
- a defined filtration grade is required
- the buyer can manage replacement elements
- the system needs a simple downstream filtration stage
In many projects, the best answer is not one technology. It may be a combination of pre-separation, magnetic separation, paper or cartridge filtration, and proper tank design.
What To Ask A Chinese Supplier Before You Source
Use this checklist before requesting a quotation:
- What material and particle size is this separator designed for?
- What coolant type and concentration were used in testing?
- What flow rate and pressure range does the unit require?
- Is it a standalone separator or part of a compact filtration module?
- What contamination level can it realistically handle?
- What test data supports the claimed efficiency?
- What baseline supports any energy-saving claim?
- How does the supplier choose energy-efficiency grade for aluminum versus steel?
- What maintenance remains if it is consumable-free?
- What drawings, interface dimensions, and connection details can the supplier provide?
- What inspection and pre-shipment checks can be documented before export?
If the supplier cannot answer these questions clearly, the sourcing risk is still open.
How I Would Handle This As A China Sourcing Agent
For this kind of coolant filtration component, I would not start with a catalog comparison.
I would first clarify:
- the machining material
- the coolant contamination problem
- the expected particle size range
- the flow, lift, and pressure conditions
- the existing tank, pump, and piping layout
- the buyer's local installation and service responsibility
- the model data needed before shipment
- the evidence standard for the 80%-90% energy-saving or efficiency-related claim
Then I would compare Chinese suppliers based on their technical questions, test evidence, drawings, selection table, and willingness to support practical shipment checkpoints.
Molitech's role is China-side technical sourcing: supplier search, RFQ clarification, sample or order follow-up, and simple pre-shipment checks when needed. It is not overseas installation, commissioning, machine repair, or a promise that one filtration device will solve every coolant problem.
Practical Internal Links
If you are evaluating coolant filtration parts, compact modules, or auxiliary accessories from China, these pages may help:
Conclusion
A fourth-generation consumable-free vortex separator can be a practical option for coolant filtration, especially when the buyer wants to reduce filter-media consumption and simplify part of the filtration process.
The safe sourcing decision depends on application fit. The useful question is not only whether the unit is "high efficiency," but whether the model, flow, lift, material, coolant condition, and energy-efficiency level are matched to the real machining process.
Before choosing a Chinese supplier, define the contamination problem, material, particle size, flow rate, lift, interface requirements, maintenance plan, and evidence standard. Then compare suppliers by their technical discipline, available model data, and application-specific test evidence.
If you are reviewing compact coolant filtration modules or vortex separator options from China, prepare your machining material, coolant condition, target particle range, flow requirement, lift condition, and interface photos. I can help turn that into a technical sourcing and order follow-up checklist before you commit to a trial order.
---
