CNC Lathe Chuck Jaws
Choose from standard jaw families or request custom jaw design and manufacturing support. Standard compatibility is confirmed against the exact chuck model and interface; custom jaws are reviewed against the chuck, workpiece geometry, gripping requirement and customer-confirmed drawing.
Find a jaw family by chuck type or model series
Search examples: SC08, 1.5 × 60°, scroll chuck, DIN, JIS, POM or T-Nut.
01 / HYDRAULICStandard Hydraulic Soft Jaws
SC-04 through SC-79; common 1.5 × 60° and 3.0 × 60° serrations.

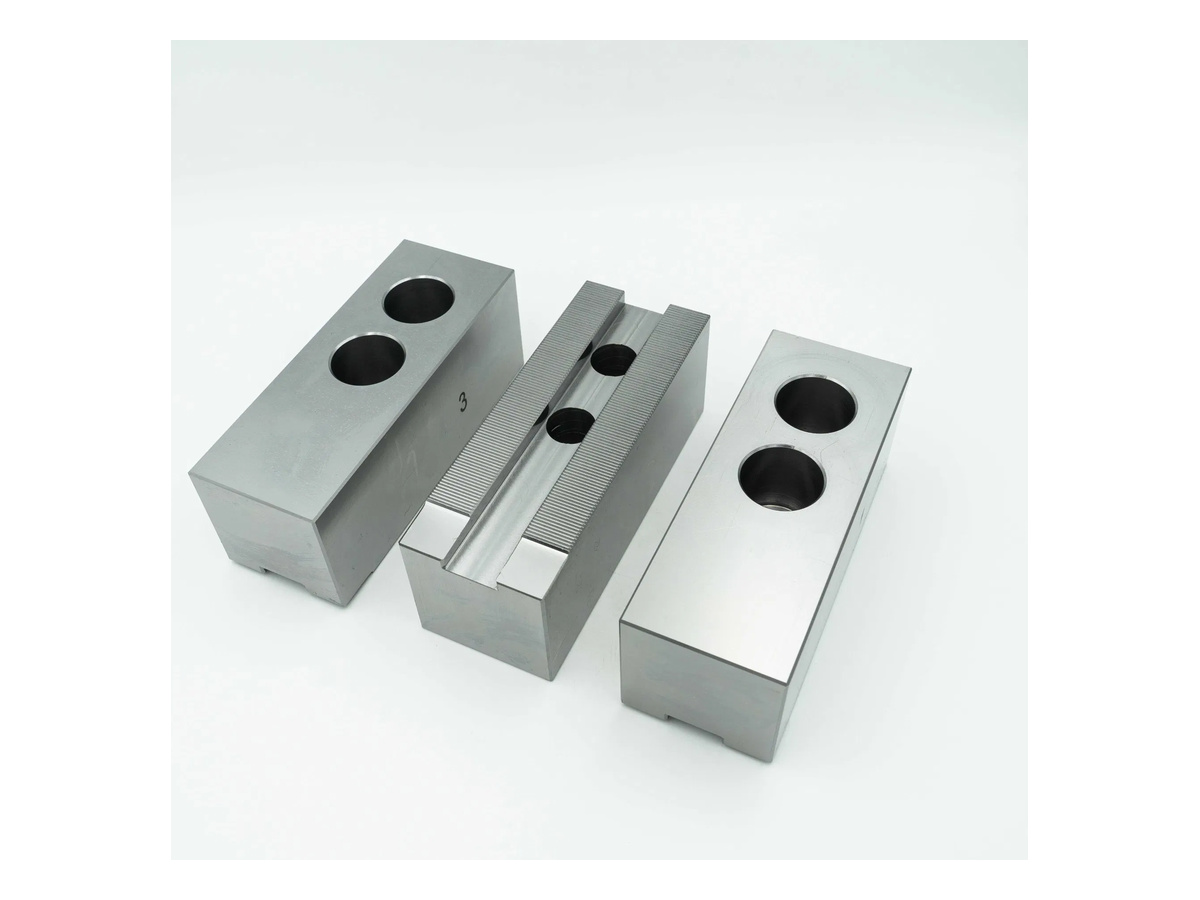

Shown: CS-05 standard soft jaws
02 / SPECIAL FORMExtra-Height Soft Jaws
Catalog height ranges from 50 mm to 200 mm depending on series.
Shown: 6-inch custom 150 mm-height soft jaws
03 / SPECIAL FORMPointed Soft Jaws
60°, 90° and 120° point forms for supported SC interfaces.
Shown: 8-inch top-pointed soft jaws
04 / SPECIAL FORMExtra-Width Soft Jaws
Catalog width and height combinations for SC06, SC08 and SC10.
Shown: 6-inch widened hydraulic-chuck jaws
05 / MATERIALPOM Soft Jaws
Standard and pointed engineering-plastic jaw forms.
Shown: POM soft jaws for hydraulic chucks
06 / HARD JAWSHydraulic Chuck Hard Jaws
HJ series hard jaws for supported hydraulic chuck interfaces.
Shown: HJ-15 steel standard hard jaws
07 / SCROLL CHUCKScroll Chuck Soft Jaws
Cr series from Cr-04 through Cr-20 plus HE-2486.
Shown: 6-inch manual scroll-chuck soft jaws
08 / POWER & SCROLLWedge and Scroll Chuck Jaws
K51/K51T/K51F, K52/K54/K55 and RZ families.
Shown: K51/K51T/K51F catalog reference
09 / DINDIN-Series Top Jaws
Inch and metric serrated jaws plus tongue-and-groove soft blanks.
Shown: DIN top-jaw catalog reference
10 / JISJIS-Series Jaws
Serrated, tongue-and-groove, S1 and hard-jaw types.
Shown: JIS soft-jaw catalog reference
11 / PRECISION CHUCKSuper-Precision Chuck Jaws
J-04, J-06 and J-08 jaw drawings are included in the catalog.
Shown: J-04/J-06/J-08 catalog reference
12 / ACCESSORIEST-Nuts & Boring Rings
DIN, JIS and power-chuck T-Nuts grouped as supporting accessories.
Shown: lathe chuck soft-jaw boring ringNo matching series. Send the chuck model or jaw drawing for identification.
Send these details for selection or design review
- Chuck brand, exact model and nominal size
- Through-hole or non-through configuration
- Serration pitch and angle or tongue-and-groove dimensions
- Current jaw drawing or clear photos with measured dimensions
- Required form, material, quantity and delivery date
- Workpiece drawing, gripping datum, cutting condition and inspection need for custom design
