APPLICATIONS

Machined parts for real equipment.

Start with the part function, interfaces and acceptance requirements.

RoboticsSemiconductor equipmentIndustrial equipmentPrecision instruments

APPLICATION SCENARIOS

Use the closest scenario to start the drawing review.

Choose the closest scenario, then share the drawing and assembly context that controls fit and function.

Share alignment, datum, surface and inspection needs.

Frames, links, joints and mounting interfaces.

Material, finish, cleanliness and packaging reviewed together.

Housings, covers, shafts and assembly interfaces.

Function, approval and documentation requirements must be stated.

Critical uses require a separately validated route before acceptance.

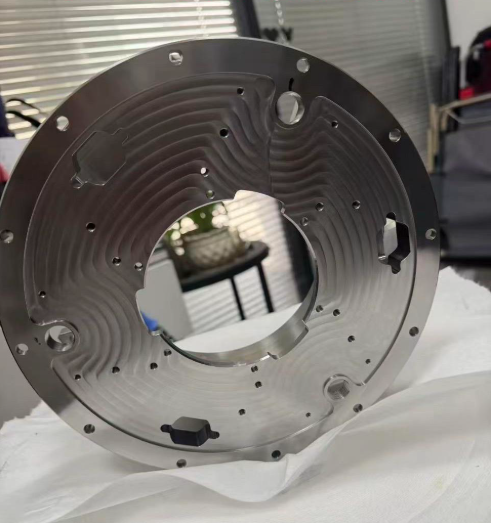

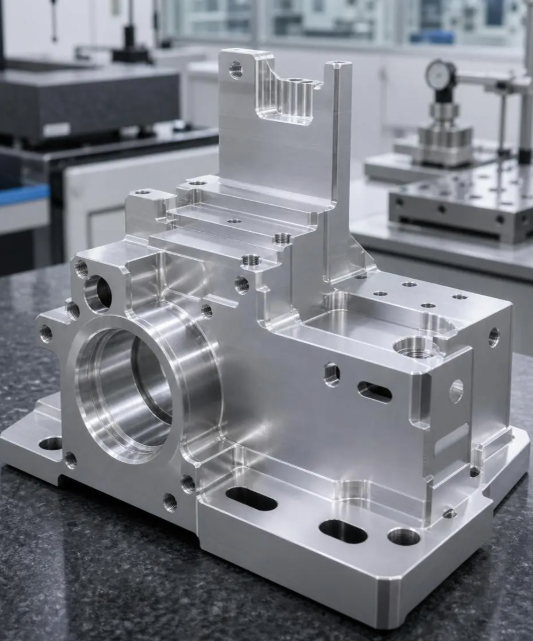

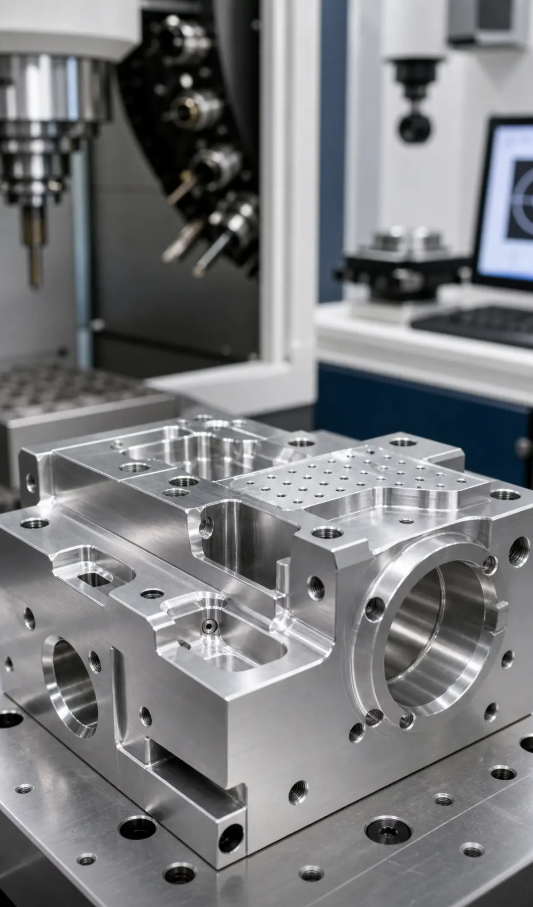

Multi-feature instrument housing

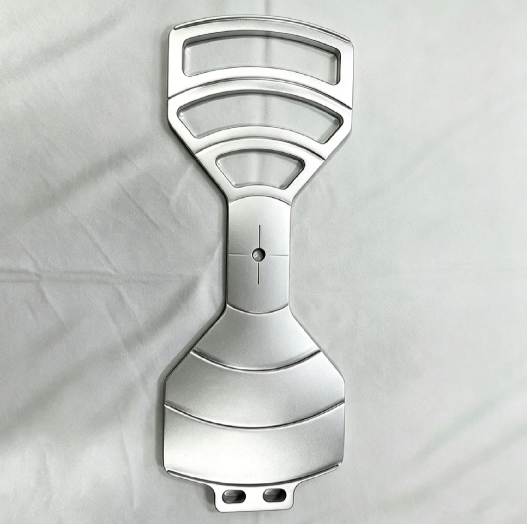

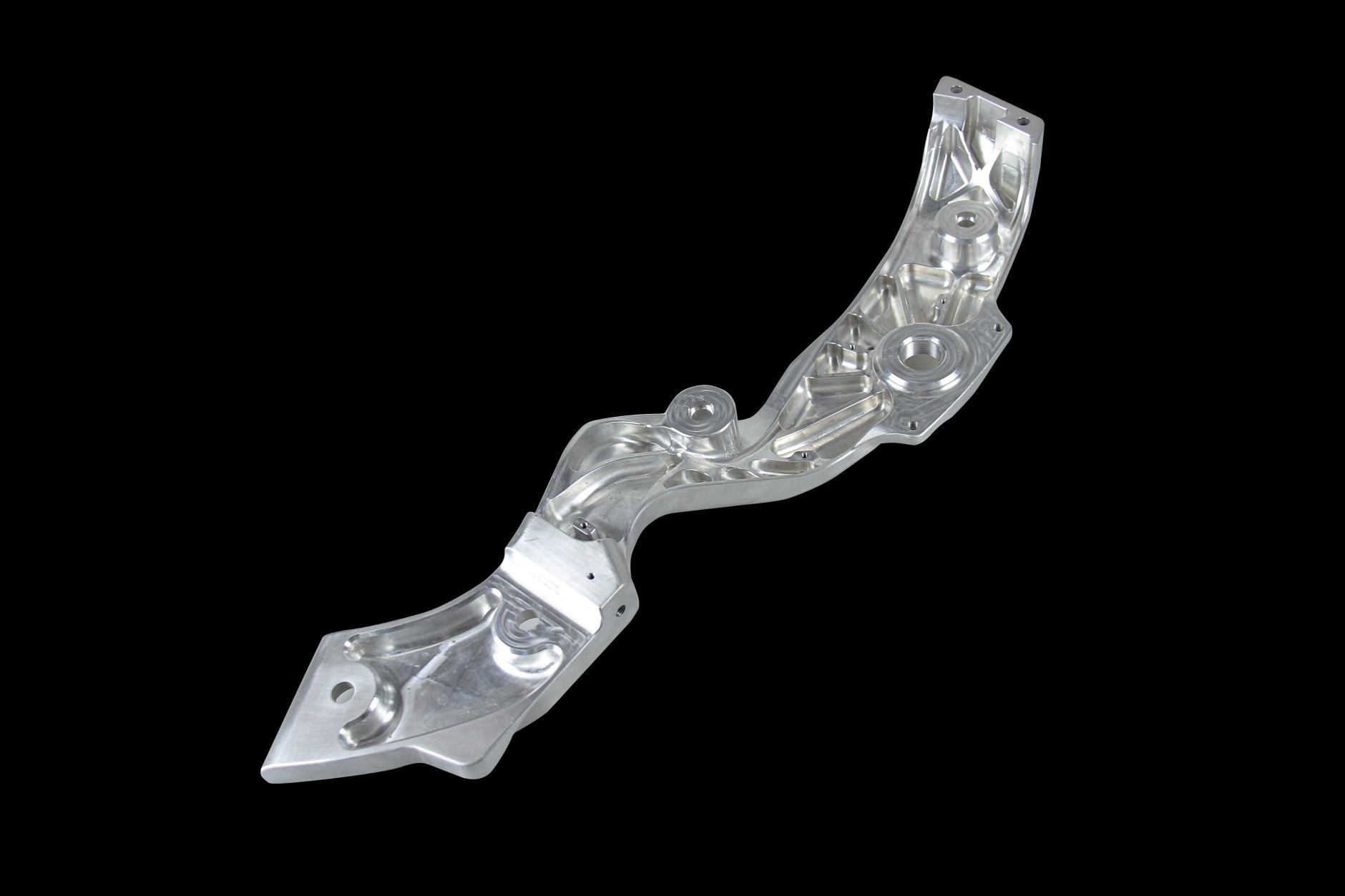

Profiled precision component

01 / RESEARCH & PRECISION INSTRUMENTS

Drawing-defined housings, stages and interfaces for laboratory, optical and measurement equipment.

Share the controlled interfaces, alignment or datum needs, assembly context and inspection records required.

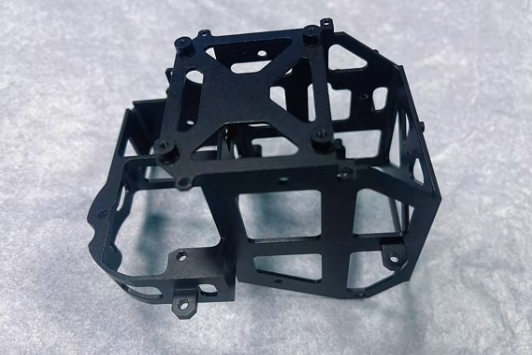

Lightweight frame

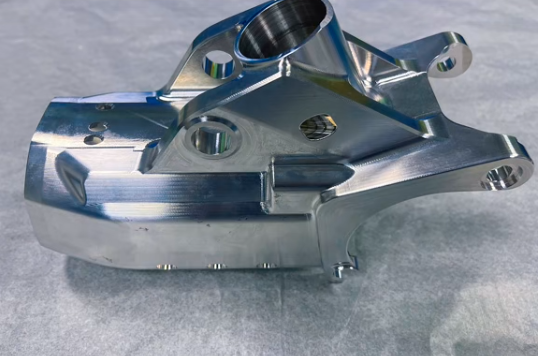

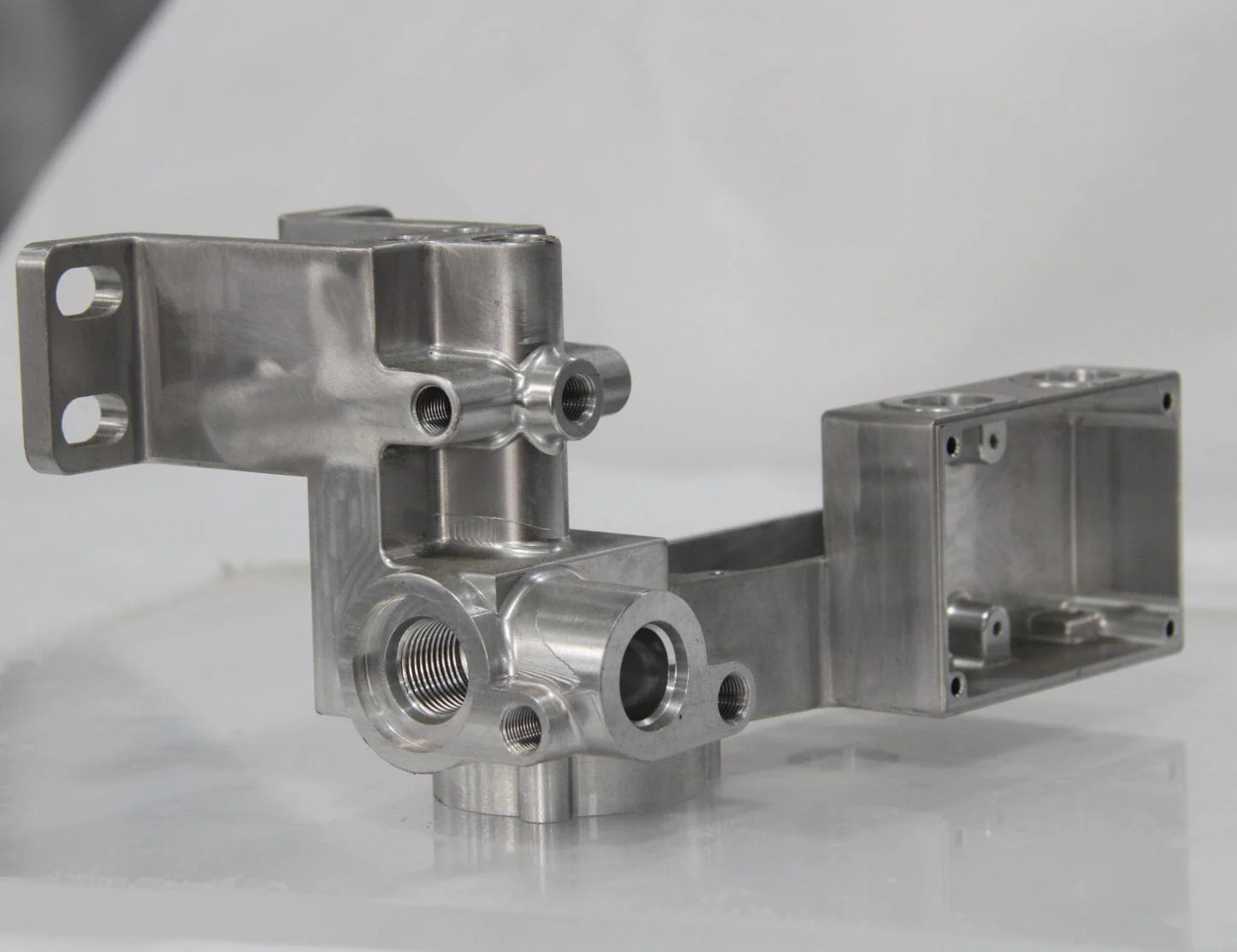

Complex joint housing

02 / ROBOTICS & AUTOMATION

Structural frames, joint housings and mounting components for robotic and automated assemblies.

Identify load paths, mating parts, controlled bores, weight-sensitive areas and the features that govern assembly fit.

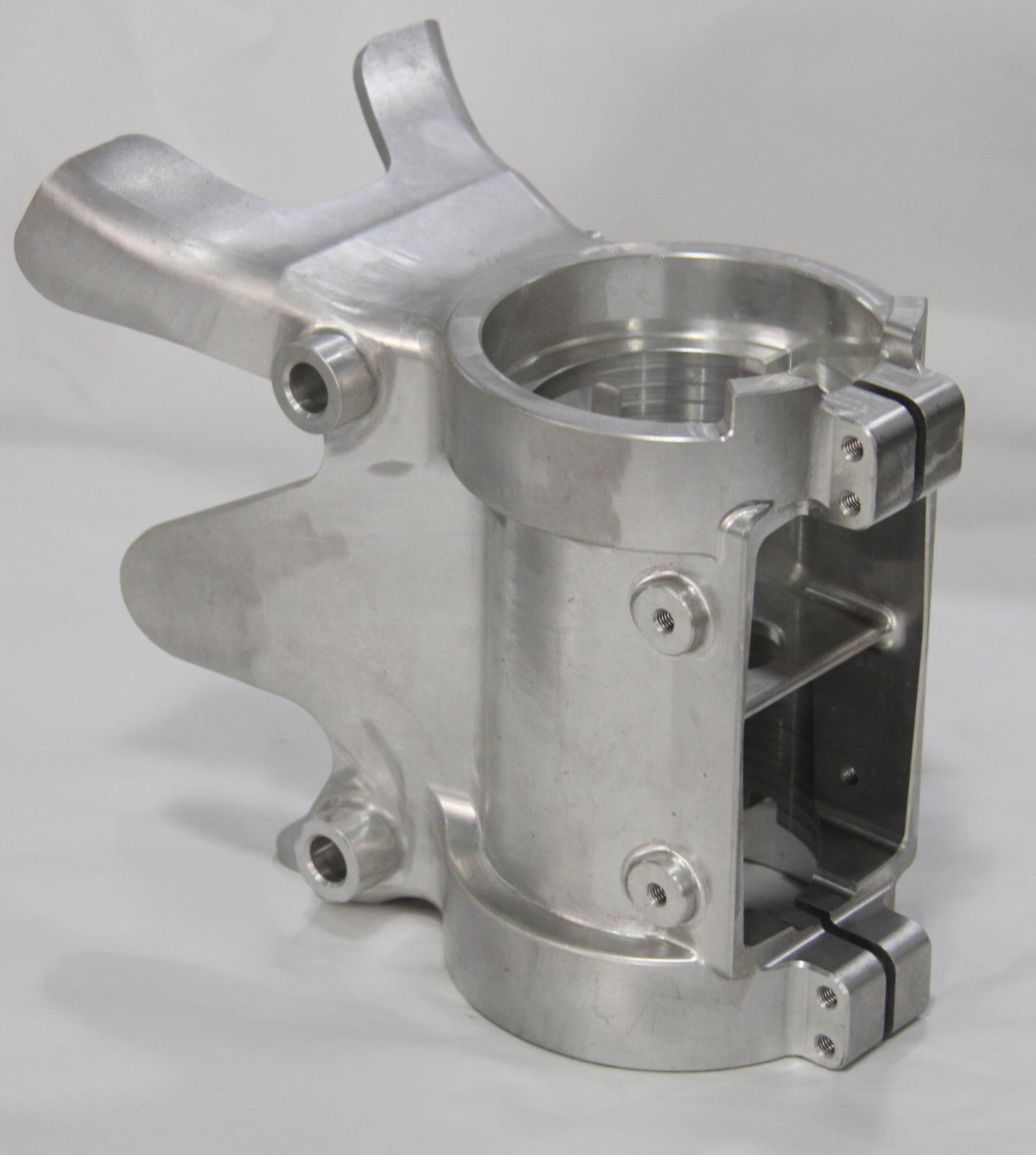

Multi-bore equipment housing

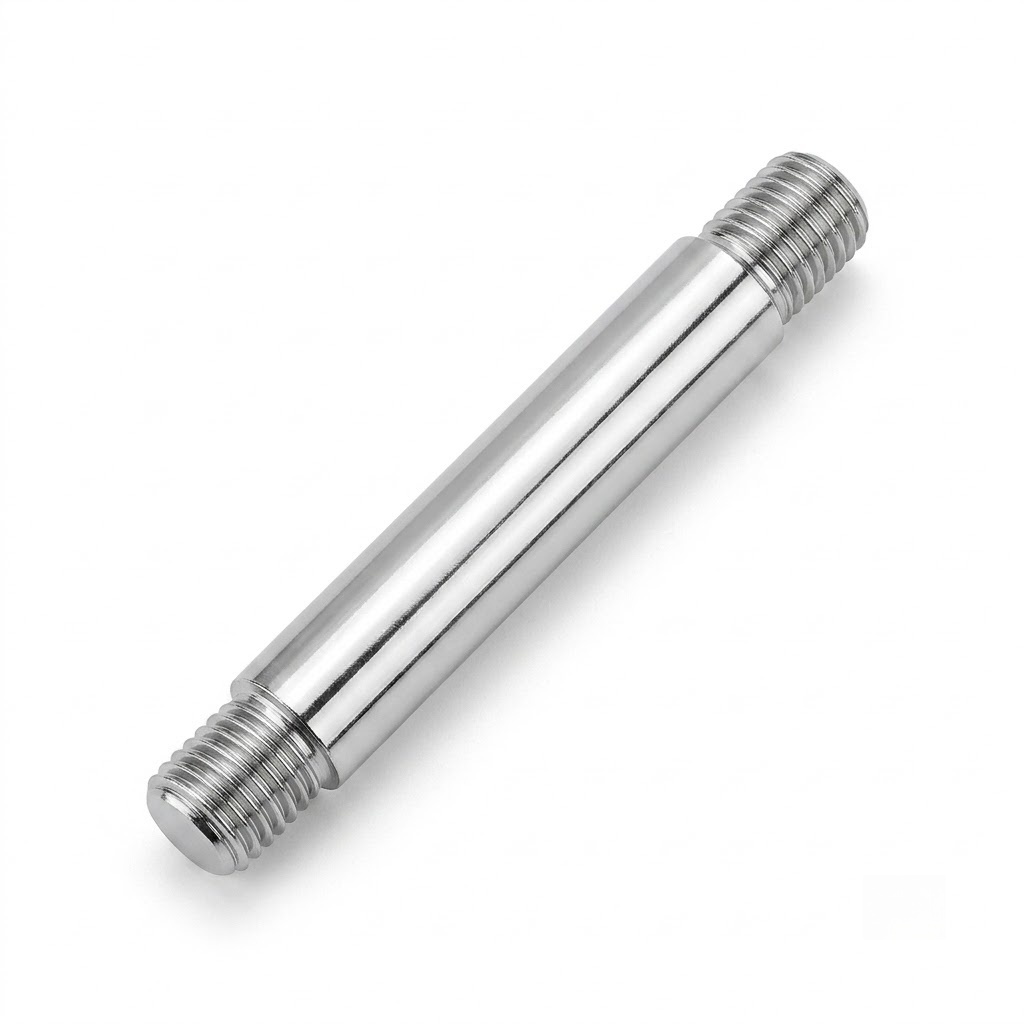

Threaded shaft component

03 / INDUSTRIAL EQUIPMENT

Build-to-print components for production equipment, special machinery and industrial assemblies.

Confirm critical fits, bearing or seal interfaces, surface finish, quantity and the inspection scope needed for release.

FROM DRAWING TO ORDER

For confidential projects, begin with a non-sensitive description and agree confidentiality arrangements before restricted files are shared.
